Shaft explosion-proof blower fans with opposite rotation, series HFFBDY

The HFFBDY series fan is a new type of local ventilation fan that features a compact design, low noise levels, high air pressure, high efficiency, stable operation, and a wide range of applications.

The fan can operate as a complete unit or as a separate fan assembly depending on the length of the mine face and ventilation requirements for underground workings, which helps reduce energy consumption.

This product is ideal for local ventilation over long distances during tunnel excavation.

  • The fan is equipped with a silencer, and the outer casing of the fan is made from flexible material, which significantly reduces the noise from the high-speed airflow inside the casing. The noise produced by the fan during operation is softened.
  • In this type of fan, the electric motor is not bolted to the casing but is installed within a single casing. This design prevents motor connection instability, ensures compactness, and enhances safety during operation.
  • Since the fan and motor are installed in a single casing, there is no external motor radiator; instead, an air-cooled motor is used, which extends the motor's lifespan. Meanwhile, this reduces the fan's noise, the diameter of the fan, and the drum (increasing the useful cross-section of the mine).
  • The outer diameters of the rectifier cover, silencer drum, motor frame, and rear cone of the silencer are uniform to ensure a smooth channel, improve the fan's pressure coefficient, and increase the air delivery distance.
  • One end of the silencer is fixed, and the other is movable, making it easier to replace the silencer when a failure is detected, ensuring effective sound attenuation and prolonging the fan's service life.

It is mainly used for partial ventilation in coal mines containing explosive gases and is designed for use in metal mines, chemical mines, tunnels, and other shafts.

Specification Motor power (kW) Voltage (V) Current (A) Airflow (m³/min) Total pressure (Pa) Max. full efficiency (%) Noise (dB)
No 3.55/2×1.1 2×1.1 380/660 2.5/1.4 95~60 330~1400 ≥75 ≤30
No 4.0/2×2.2 2×2.2 380/660 4.7/2.7 130~95 600~1800 ≥75 ≤30
No 4.5/2×4 2×4 380/660 8.2/4.7 200~140 700~2300 ≥75 ≤30
No 4.5/2×5.5 2×5.5 380/660/1140 11.1/6.4/3.7 200~140 800~2600 ≥75 ≤30
No 5.0/2×7.5 2×7.5 380/660/1140 15/8.6/5.0 260~190 1050~3000 ≥75 ≤30
No 5.6/2×11 2×11 380/660/1140 20.8/12.6/7.3 360~275 1100~3600 ≥80 ≤25
No 6.0/2×15 2×15 380/660/1140 29.4/16.9/9.8 410~310 1200~4100 ≥80 ≤25
No 6.0/2×18.5 2×18.5 380/660/1140 35.5/20.4/11.8 420~300 1000~4700 ≥80 ≤25
No 6.0/2×22 2×22 380/660/1140 42.4/24.3/14.0 460~350 1000~5000 ≥80 ≤25
No 6.3/2×30 2×30 380/660/1140 56.9/32.8/18.9 590~435 1700~5600 ≥80 ≤25
No 6.7/2×37 2×37 380/660/1140 67.1/38.6/22.4 680~510 2000~6000 ≥80 ≤25
No 7.1/2×45 2×45 380/660/1140 80.6/46.5/26.9 750~500 850~6300 ≥80 ≤25
No 7.5/2×55 2×55 380/660/1140 100/58/33.5 980~680 1400~6500 ≥80 ≤25
No 8.0/2×75 2×75 380/660/1140 134.5/77.6/45 980~710 1200~8700 ≥80 ≤25

  1. Collector
  2. Noise-absorbing part 1
  3. Primary noise-absorbing main mechanism
  4. Primary impeller
  5. Secondary impeller
  6. Secondary noise-absorbing main mechanism
  7. Noise-absorbing part 2



  1. Collector
  2. Noise-absorbing part 1
  3. Primary noise-absorbing main mechanism
  4. Primary impeller
  5. Secondary impeller
  6. Secondary noise-absorbing main mechanism
  7. Noise-absorbing part 2

Specification Motor power (kW) Voltage (V) Current (A) Airflow (m³/min) Total pressure (Pa) Max. full efficiency (%) Equivalent sound level (dBA)
No 3.55/3×1.1 3×1.1 380/660 2.5/1.4 153~76 350~2100 ≥75 ≤30
No 4.0/3×2.2 3×2.2 380/660 4.7/2.7 220~113 450~2520 ≥75 ≤30
No 4.5/3×4 3×4 380/660 8.2/4.7 220~150 420~3220 ≥75 ≤30
No 4.5/3×5.5 3×5.5 380/660/1140 11.1/6.4/3.7 240~160 440~4340 ≥75 ≤30
No 5.0/3×7.5 3×7.5 380/660/1140 15/8.6/5.0 300~180 480~4900 ≥75 ≤30
No 5.6/3×11 3×11 380/660/1140 20.8/12.6/7.3 400~200 490~5600 ≥80 ≤25
No 6.0/3×15 3×15 380/660/1140 29.4/16.9/9.8 450~250 620~7100 ≥80 ≤25
No 6.0/3×18.5 3×18.5 380/660/1140 35.5/20.4/11.8 500~250 630~7700 ≥80 ≤25
No 6.0/3×22 3×22 380/660/1140 42.4/24.3/14.0 550~250 640~8400 ≥80 ≤25
No 6.3/3×30 3×30 380/660/1140 56.9/32.8/18.9 630~260 640~8820 ≥80 ≤25
No 6.7/3×37 3×37 380/660/1140 67.1/38.6/22.4 730~410 1200~9000 ≥80 ≤25
No 7.1/3×45 3×45 380/660/1140 80.6/46.5/26.9 820~550 1480~9130 ≥80 ≤25
No 7.5/3×55 3×55 380/660/1140 100/58/33.5 980~630 1850~9240 ≥80 ≤25


Three -Stage Fan, below No. 6 . 3
  1. Collector
  2. Front silencer
  3. Primary drum
  4. Primary impeller
  5. Secondary impeller
  6. Secondary drum
  7. Tertiary drum
  8. Tertiary impeller
  9. Drum for the guide apparatus
  10. Noise-absorbing part



Three-stage fan, above No. 6.7

  1. Collector silencer
  2. Primary drum
  3. First stage impellers
  4. Second stage impellers
  5. Secondary drum
  6. Tertiary drum
  7. Third stage impellers
  8. Drum for the guide apparatus
  9. Noise-absorbing part


Specification Electric motor power (kW) Voltage (V) Current (A) Capacity (m³/min) Total pressure (Pa) Max. full efficiency (%) Equivalent sound level (dBA)
No 3.55/4×1.1 4×1.1 380/660 2.5/1.4 153~76 450~2700 ≥75 ≤30
No 4.0/4×2.2 4×2.2 380/660 4.7/2.7 220~113 540~3240 ≥75 ≤30
No 4.5/4×4 4×4 380/660 8.2/4.7 220~150 540~4140 ≥75 ≤30
No 4.5/4×5.5 4×5.5 380/660/1140 11.1/6.4/3.7 240~160 580~5580 ≥75 ≤30
No 5.0/4×7.5 4×7.5 380/660/1140 15/8.6/5.0 300~180 610~6300 ≥75 ≤30
No 5.6/4×11 4×11 380/660/1140 20.8/12.6/7.3 400~200 630~7200 ≥80 ≤25
No 6.0/4×15 4×15 380/660/1140 29.4/16.9/9.8 450~250 790~9200 ≥80 ≤25
No 6.0/4×18.5 4×18.5 380/660/1140 35.5/20.4/11.8 500~250 810~9900 ≥80 ≤25
No 6.0/4×22 4×22 380/660/1140 42.4/24.3/14.0 550~250 810~10800 ≥80 ≤25
No 6.3/4×30 4×30 380/660/1140 56.9/32.8/18.9 630~260 830~11340 ≥80 ≤25
No 6.7/4×37 4×37 380/660/1140 67.1/38.6/22.4 730~410 1480~11600 ≥80 ≤25
No 7.1/4×45 4×45 380/660/1140 80.6/46.5/26.9 820~550 1850~11740 ≥80 ≤25
No 7.5/4×55 4×55 380/660/1140 100/58/33.5 980~680 2200~11880 ≥80 ≤25

Four-Stage fan, below No. 6.3

  1. Collector
  2. Front silencer
  3. Primary drum
  4. Primary impeller
  5. Secondary impeller
  6. Secondary drum
  7. Tertiary drum
  8. Tertiary impeller
  9. Fourth drum
  10. Fourth impeller
  11. Noise-absorbing part

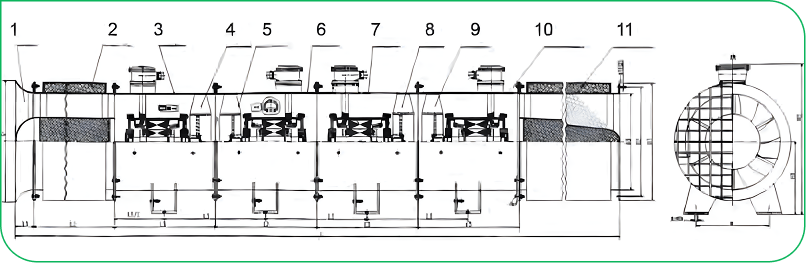

Four-Stage fan, above No. 6.7

  1. Collector
  2. Front silencer
  3. Primary drum
  4. Primary impeller
  5. Secondary impeller
  6. Secondary drum
  7. Tertiary drum
  8. Tertiary impeller
  9. Fourth drum
  10. Fourth impeller
  11. Noise-absorbing part
